DIAGNOSTICS

Body Scan Pro

Also known as Body Comp Analysis Pro, BODYMAP 360

Body Scan Pro is an advanced 3D body composition and postural analysis platform that combines a structured light camera with multi frequency DSM bioelectrical impedance analysis for millimetre level accuracy.

Authorised Alteon distributor in India . Installation, training and AMC by TechFit
Body Scan Pro
Overview

What the Body Scan Pro is

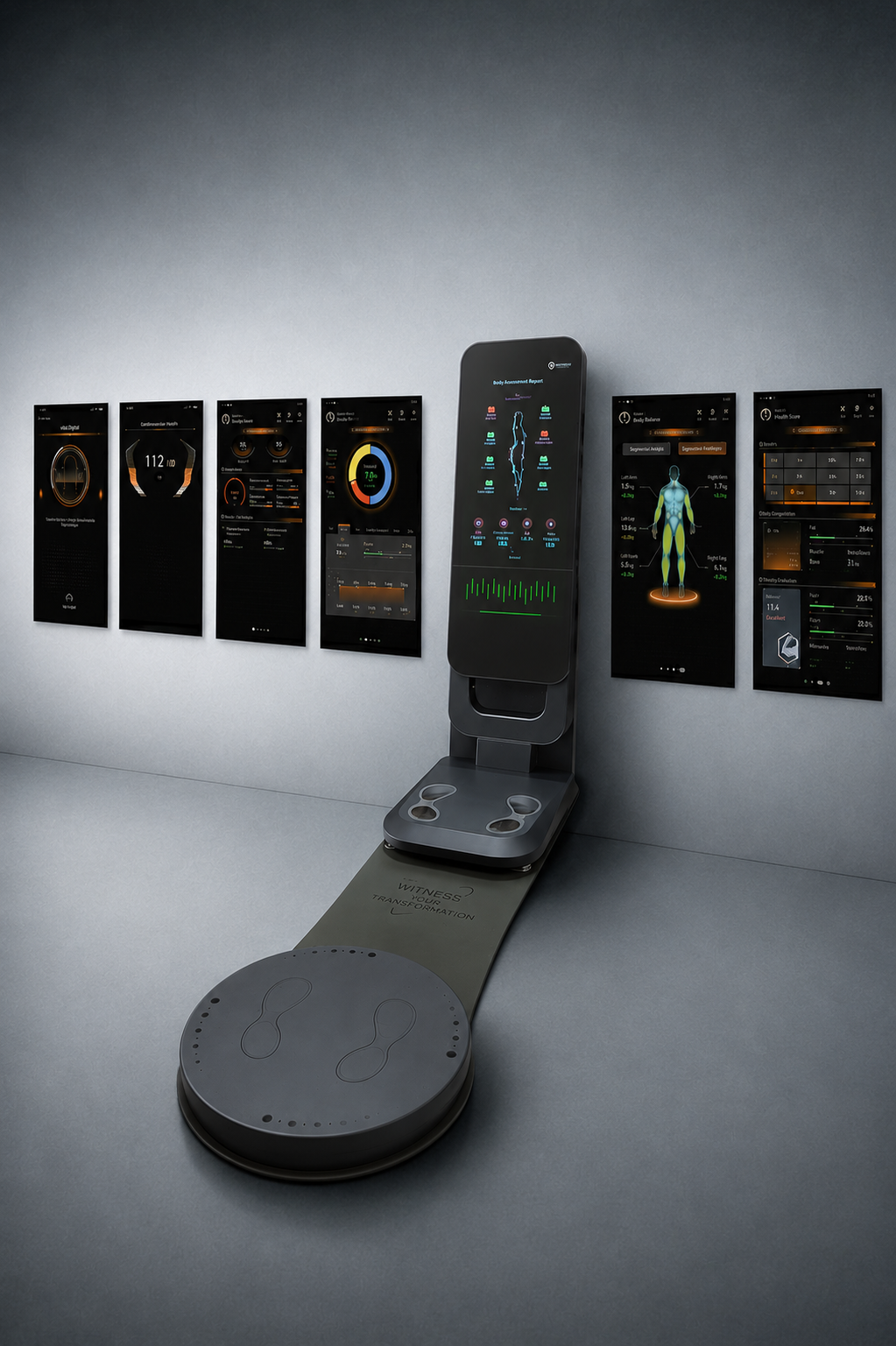

Body Scan Pro is an advanced 3D body composition and postural analysis platform that combines a structured light camera with multi frequency DSM bioelectrical impedance analysis for millimetre level accuracy. A 360 degree auto rotating turntable captures a complete three dimensional profile of the body in seconds, while proprietary segmental algorithms deliver 56 health metrics and 8 posture assessments. Designed for clinical diagnostics, elite performance tracking, and longevity programming, it presents every result on an integrated 42.8 inch mirror display. It is a commercial grade solution for sports medicine clinics, premium fitness clubs, and medical spas across India.

Sports medicine and orthopaedic clinicsPremium fitness clubs and performance studiosMedical spas and aesthetic centresLongevity and preventative health clinicsCorporate wellness and body transformation programmes
Body Scan Pro overview
How it works

What happens in a session

The system fuses Direct Segmental Multi frequency Bioelectrical Impedance Analysis with an 8 point tactile electrode contact system, reading the body across five segments and three frequencies of 5kHz, 50kHz, and 250kHz. Simultaneously a 3D structured light camera scans the body as the turntable rotates a full 360 degrees, building an accurate volumetric model. The combined data is processed into a comprehensive digital report covering composition, posture, and segmental balance.

Benefits

What your clients get from it

01Delivers precise whole body composition including fat mass, muscle mass, and water distribution
02Identifies postural imbalances and asymmetries for corrective exercise planning
03Tracks body transformation and training progress over time with objective data
04Supports orthopaedic and sports medicine assessment with segmental detail
05Enables preventative health screening and metabolic risk profiling
06Provides fast, non invasive measurement with no discomfort to the client
07Improves client engagement through clear visual reporting on the mirror display
08Assists longevity and wellness centres in personalising programmes

Outcomes vary by person and protocol. This equipment supports wellness and recovery programmes and is not a substitute for medical treatment.

Features

How it is built

  • 3D structured light camera for millimetre level volumetric scanning
  • DSM BIA analysis across 8 point contact, 4 electrode, 5 factor, 5 segment configuration
  • Three measurement frequencies of 5kHz, 50kHz, and 250kHz
  • 360 degree automatic rotating turntable of 550 by 550 mm
  • 42.8 inch mirror display for immersive on screen reporting
  • 56 health metrics and 8 posture assessments per scan
  • Comprehensive digital reporting interface
  • Available in Pearl White, Sakura Pink, and Graphite Grey finishes
  • Broad test range accommodating ages 16 to 99 years
  • Compact footprint suitable for clinic and studio environments
Technical specifications

Body Scan Pro specifications

Product NameBODY SCAN PRO
Measurement Configuration8 Point Contact / 4 Electrode Measurement / 5 Factor Calculation / 5 Segments / 3 Frequencies (5kHz, 50kHz, 250kHz)
Measurement MethodDirect Segmental Multi-frequency Bioelectrical Impedance Measurement (DSM-BIA)
Imaging Technology3D Structured Light Depth Image Capture & Human Body Recognition Technology
Power InputAC 100 to 240V, 50/60Hz, 1.4 to 0.7A
Power OutputDC 12V, 8.5A
Equipment Size1700 × 440 × 1700 mm
Turntable Size550 × 550 mm
Equipment Net Weight70 kg
External InterfaceNetwork Cable Interface ×1, USB 2.0 ×3, Power Interface ×1
Compatible PeripheralsLaser Printers of Specified Models
Test Age Range16 to 99 Years
Test Height Range140 to 210 cm
Test Weight Range5 to 220 kg
Display42.8" Edge-to-Edge Mirror Display
Body Composition Metrics56 Body Composition Metrics
Posture Assessments8 Posture Assessments
Dimensions72 x 72 in
Installation in India

From site check to handover

01Site assessment

Room size, access route, floor loading, ventilation and power are checked against the unit before you order.

02Delivery and installation

TechFit engineers deliver, position, connect and commission the unit at your facility.

03Operator training

Your team is trained on protocols, daily checks, hygiene and safe operation.

04Service and AMC

Spares, breakdown support and an annual maintenance contract, pan India.

Alteon Elysion hyperbaric chamber installed by TechFit at Matrix Wellness, Mumbai
Installed in India

Matrix Wellness, Mumbai

Tiger and Krishna Shroff's recovery and longevity centre in Santacruz West runs 14 Alteon machines, from the Elysion hyperbaric chamber and CryoOnyx Pro to IHHT, PEMF and the Body Scan Pro, all supplied and installed by TechFit.

Questions

Frequently asked

Is the Body Scan Pro available in India?

Yes. TechFit is the authorised distributor of Alteon in India and supplies the Body Scan Pro with site assessment, delivery, installation, operator training and AMC nationwide.

What is the price of the Body Scan Pro?

Pricing depends on the configuration, quantity and your site, so it is shared directly. Message TechFit on WhatsApp with your city and requirement and the team replies with a written quotation.

What space and power does the Body Scan Pro need?

The technical specifications on this page list the unit size and power supply. TechFit reviews your room, access route, flooring, ventilation and electrical points before delivery and shares a site readiness checklist with the quotation.

Who installs and services it?

TechFit engineers install and commission the unit, train your operators and support it afterwards with spares and an annual maintenance contract, across India.

Is it suitable for commercial use?

Yes. It is built for gyms, hotels, clinics, longevity centres and high traffic recovery suites. TechFit supplies equipment only and does not offer sessions or treatments.

Want the price of the Body Scan Pro?Prices are shared directly, with a written quotation for your city and configuration.
Ask on WhatsApp
Looking for a 3D body scanner alternative in India? The Body Scan Pro is a commercial grade option supplied, installed and serviced by TechFit, the authorised Alteon distributor.
