Alteon / Fitness and Aqua / Bodyshape V2
ACTIVE RECOVERY

Bodyshape V2

Bodyshape V2 is a vertical vacuum and infrared fitness capsule that pairs a walking treadmill with controlled infrared heat and vacuum technology to intensify fat reduction and body shaping.

Authorised Alteon distributor in India . Installation, training and AMC by TechFit
Bodyshape V2
Overview

What the Bodyshape V2 is

Bodyshape V2 is a vertical vacuum and infrared fitness capsule that pairs a walking treadmill with controlled infrared heat and vacuum technology to intensify fat reduction and body shaping. As the user walks, infrared warmth raises skin temperature while a regulated vacuum draws blood flow to problem areas, targeting cellulite and stubborn fat. The result is an efficient, low intensity training session that boosts circulation and metabolism. It is ideal for slimming studios, spas, and fitness centres seeking a premium body shaping offering.

Slimming and body shaping studiosSpas and wellness centresFitness clubs and gymsAesthetic and beauty clinics
Bodyshape V2 overview
How it works

What happens in a session

The user walks on the built in treadmill inside the capsule while infrared lamps raise the temperature of the lower body to mobilise fat. A regulated vacuum surrounds the lower body to increase blood flow and lymphatic activity in the areas most prone to cellulite. The combination of movement, heat, and vacuum accelerates fat metabolism without high physical strain.

Bodyshape V2 in use
Benefits

What your clients get from it

01Targets cellulite and localised fat deposits
02Enhances blood circulation and lymphatic drainage
03Boosts metabolism during low intensity exercise
04Supports body shaping and slimming goals
05Promotes healthy sweating and detoxification
06Improves skin tone and firmness
07Delivers results with reduced joint strain
08Combines cardio and treatment in one session

Outcomes vary by person and protocol. This equipment supports wellness and recovery programmes and is not a substitute for medical treatment.

Features

How it is built

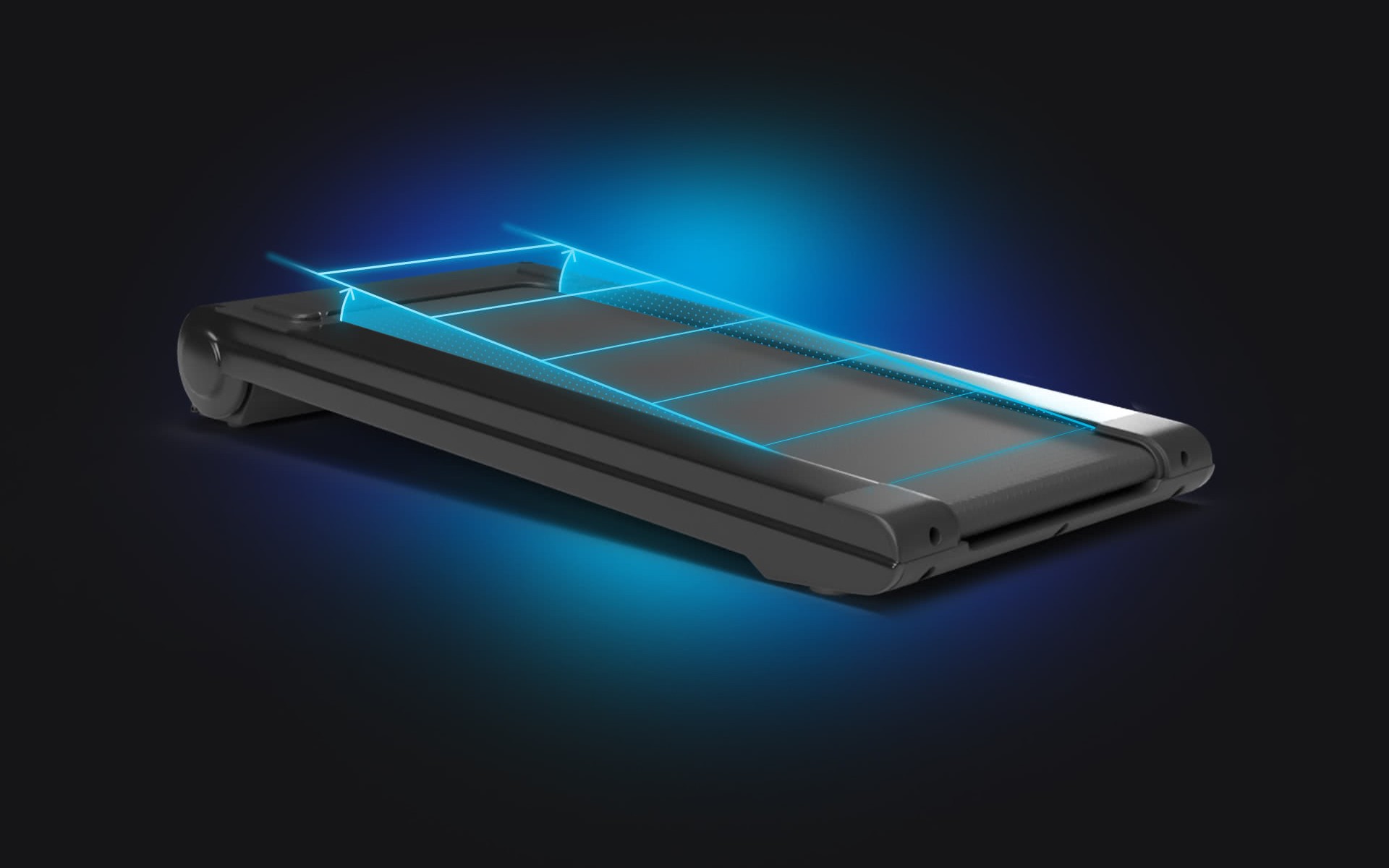

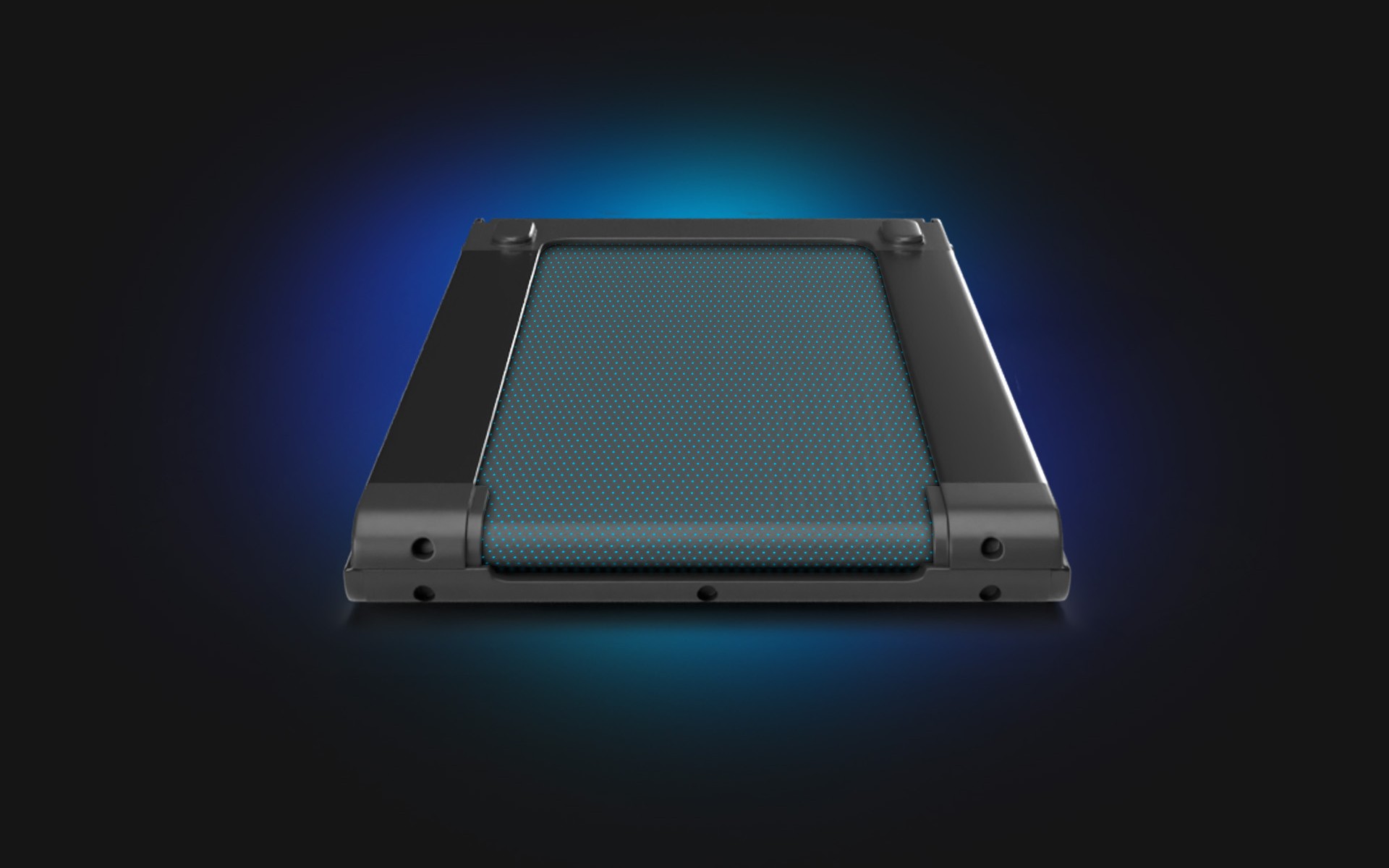

  • Vertical capsule with integrated walking treadmill
  • Infrared heating with a range of 25 to 50 degrees C
  • Two infrared lamps rated at 350 W
  • Regulated vacuum from 0 to 30 mBar
  • Treadmill speed from 1 to 12 km/h
  • Adjustable incline from 0 to 10 degrees
  • 13.3 inch touch control display
  • Maximum user load of 180 kg
Bodyshape V2 detail
Technical specifications

Bodyshape V2 specifications

Width125.1 cm (49.2 in)
Length228 cm (89.9 in)
Height160.7 cm (63.2 in)
Weight230 kg
Voltage230VAC / 50Hz / 1PH
Power consumption2.5kW
Infrared temperature range25 to 50°C
Infrared Lamp Power350W
Number of Infrared lamps2x
Vacuum range0 to 30 mBar
Vacuum power1500W
Treadmill speed range1 to 12 km/h
Treadmill incline range0 to 10°
Maximum load180 kg
Touch display size13.3 inch
Infrared IR Wavelength1400 nm
Bodyshape V2 dimensions and detail 1
Bodyshape V2 dimensions and detail 2
Installation in India

From site check to handover

01Site assessment

Room size, access route, floor loading, ventilation and power are checked against the unit before you order.

02Delivery and installation

TechFit engineers deliver, position, connect and commission the unit at your facility.

03Operator training

Your team is trained on protocols, daily checks, hygiene and safe operation.

04Service and AMC

Spares, breakdown support and an annual maintenance contract, pan India.

Alteon Elysion hyperbaric chamber installed by TechFit at Matrix Wellness, Mumbai
Installed in India

Matrix Wellness, Mumbai

Tiger and Krishna Shroff's recovery and longevity centre in Santacruz West runs 14 Alteon machines, from the Elysion hyperbaric chamber and CryoOnyx Pro to IHHT, PEMF and the Body Scan Pro, all supplied and installed by TechFit.

Questions

Frequently asked

Is the Bodyshape V2 available in India?

Yes. TechFit is the authorised distributor of Alteon in India and supplies the Bodyshape V2 with site assessment, delivery, installation, operator training and AMC nationwide.

What is the price of the Bodyshape V2?

Pricing depends on the configuration, quantity and your site, so it is shared directly. Message TechFit on WhatsApp with your city and requirement and the team replies with a written quotation.

What space and power does the Bodyshape V2 need?

The technical specifications on this page list the unit size and power supply. TechFit reviews your room, access route, flooring, ventilation and electrical points before delivery and shares a site readiness checklist with the quotation.

Who installs and services it?

TechFit engineers install and commission the unit, train your operators and support it afterwards with spares and an annual maintenance contract, across India.

Is it suitable for commercial use?

Yes. It is built for gyms, hotels, clinics, longevity centres and high traffic recovery suites. TechFit supplies equipment only and does not offer sessions or treatments.

Want the price of the Bodyshape V2?Prices are shared directly, with a written quotation for your city and configuration.
Ask on WhatsApp
Looking for a Vacu Activ alternative in India? The Bodyshape V2 is a commercial grade option supplied, installed and serviced by TechFit, the authorised Alteon distributor.
