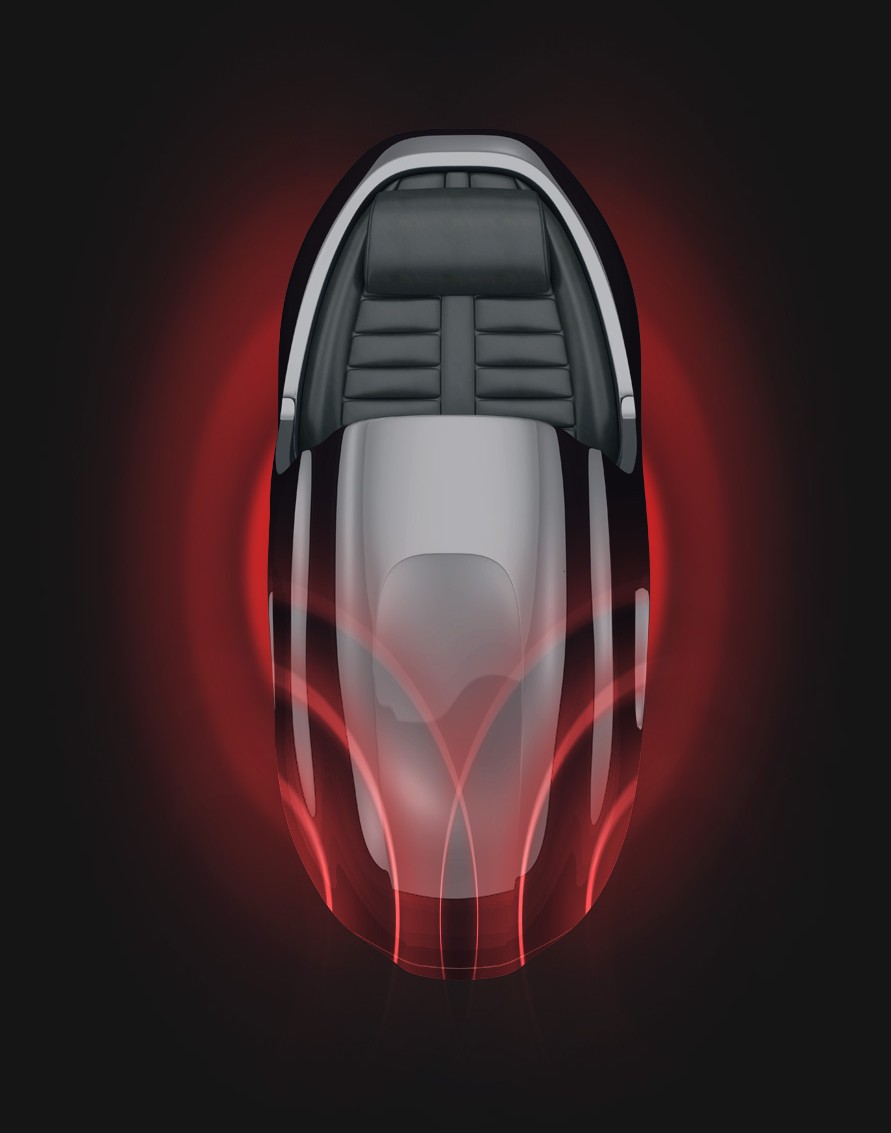

Infrashape Horizontal V2
Infrashape Horizontal V2 is a reclined vacuum and infrared fitness capsule that combines a resistance bike with infrared heat and vacuum technology for comfortable, low impact body shaping.
What the Infrashape Horizontal V2 is
Infrashape Horizontal V2 is a reclined vacuum and infrared fitness capsule that combines a resistance bike with infrared heat and vacuum technology for comfortable, low impact body shaping. The user pedals in a relaxed, semi reclined position while infrared warmth and regulated vacuum focus fat metabolism and circulation on the lower body. It offers an accessible slimming and wellness session with minimal strain on the joints. The capsule suits spas, slimming studios, and fitness centres across India.

What happens in a session
The user reclines and pedals the integrated resistance bike while infrared lamps warm the lower body to encourage fat mobilisation. A controlled under pressure vacuum envelops the lower body, drawing increased blood flow and lymphatic activity to cellulite prone areas. The comfortable horizontal posture allows longer, low strain sessions that still deliver a strong metabolic effect.

What your clients get from it
Outcomes vary by person and protocol. This equipment supports wellness and recovery programmes and is not a substitute for medical treatment.

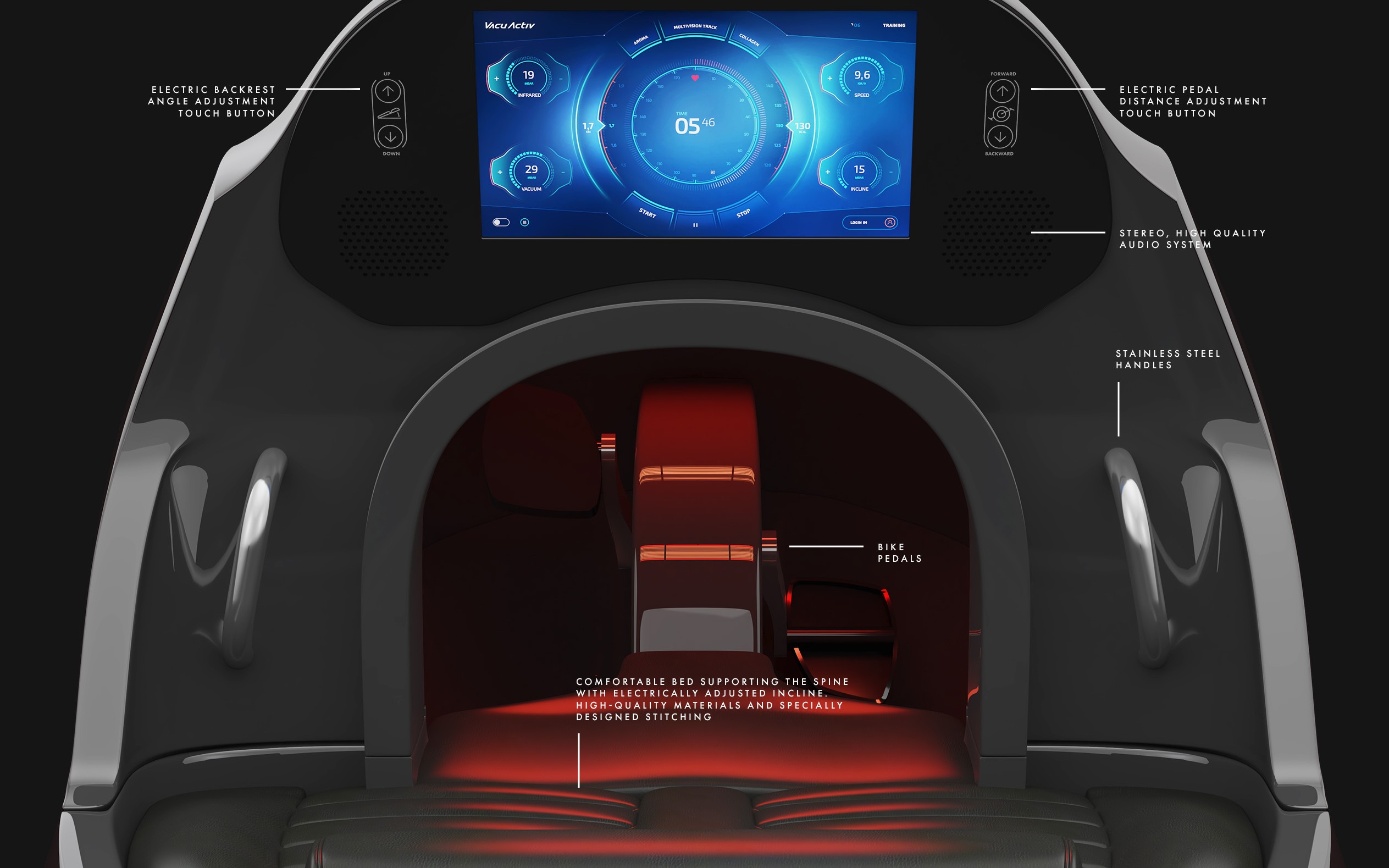

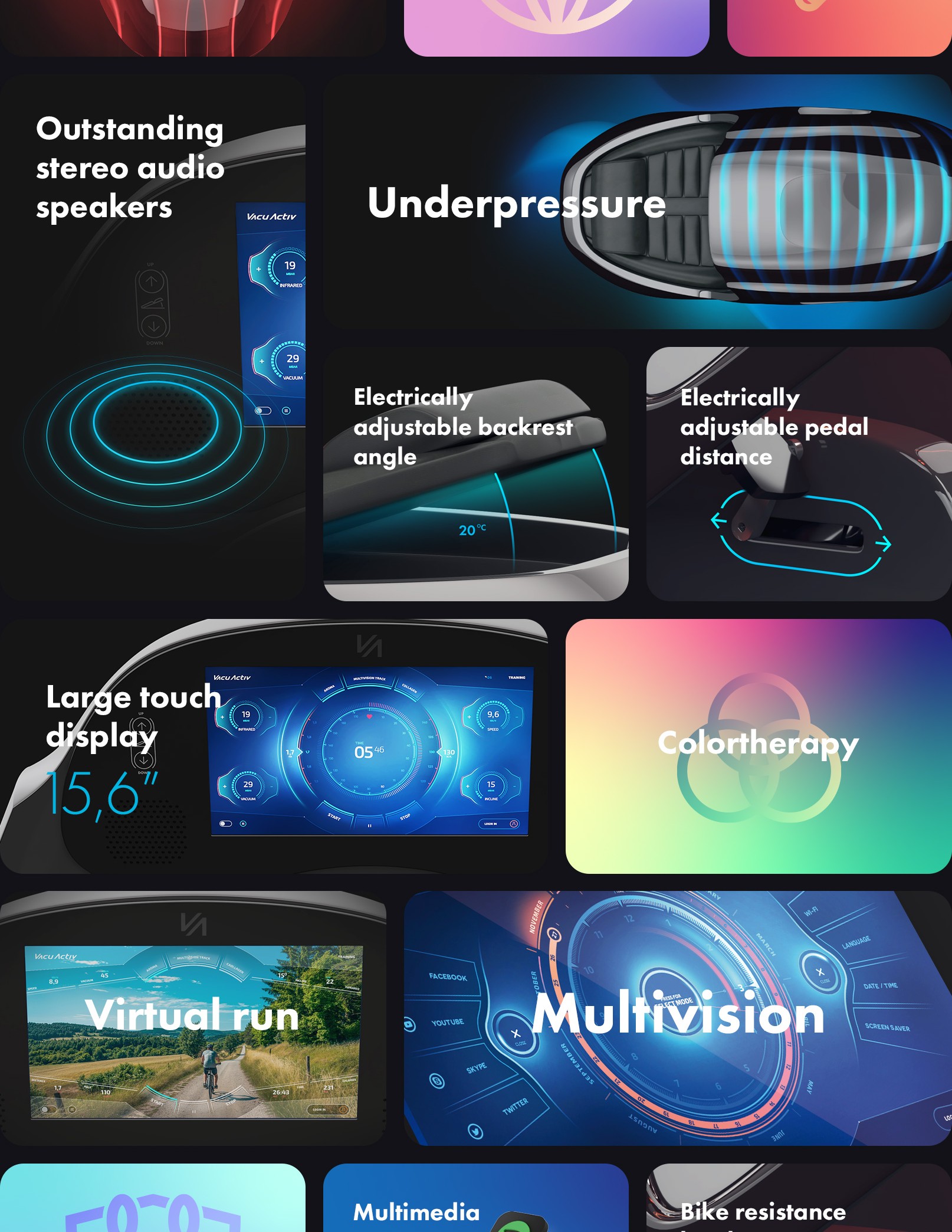

How it is built
- Reclined capsule with integrated resistance bike
- Infrared heating with a range of 25 to 50 degrees C
- Regulated under pressure vacuum from 0 to 30 mBar
- Bike resistance across 15 levels
- Adjustable backrest angle up to 20 degrees
- 15.6 inch touch control display
- Dual voltage compatibility
Infrashape Horizontal V2 specifications
| Height | 125 cm (49 in) |
| Width | 101 cm (39 in) |
| Length | 245 cm (96.5 in) |
| Weight | 190 kg |
| Power supply | 230VAC / 50Hz / 1PH or 110VAC / 50Hz / 1PH |
| Power consumption | 2 kW |
| Infrared temperature | 25 to 50°C |
| Electric adjustable backrest angle | Yes |
| Adjustable bike resistance | Yes |
| Under-pressure range | 0 to 30 mBar |
| Bike resistance levels | 15 |
| Maximum backrest incline | 20° |
| Touch display size | 15.6 inch |
| Infrared IR Wavelength | 1400 nm |
From site check to handover
Room size, access route, floor loading, ventilation and power are checked against the unit before you order.
TechFit engineers deliver, position, connect and commission the unit at your facility.
Your team is trained on protocols, daily checks, hygiene and safe operation.
Spares, breakdown support and an annual maintenance contract, pan India.
Matrix Wellness, Mumbai
Tiger and Krishna Shroff's recovery and longevity centre in Santacruz West runs 14 Alteon machines, from the Elysion hyperbaric chamber and CryoOnyx Pro to IHHT, PEMF and the Body Scan Pro, all supplied and installed by TechFit.
Frequently asked
Is the Infrashape Horizontal V2 available in India?
Yes. TechFit is the authorised distributor of Alteon in India and supplies the Infrashape Horizontal V2 with site assessment, delivery, installation, operator training and AMC nationwide.
What is the price of the Infrashape Horizontal V2?
Pricing depends on the configuration, quantity and your site, so it is shared directly. Message TechFit on WhatsApp with your city and requirement and the team replies with a written quotation.
What space and power does the Infrashape Horizontal V2 need?
The technical specifications on this page list the unit size and power supply. TechFit reviews your room, access route, flooring, ventilation and electrical points before delivery and shares a site readiness checklist with the quotation.
Who installs and services it?
TechFit engineers install and commission the unit, train your operators and support it afterwards with spares and an annual maintenance contract, across India.
Is it suitable for commercial use?
Yes. It is built for gyms, hotels, clinics, longevity centres and high traffic recovery suites. TechFit supplies equipment only and does not offer sessions or treatments.
