Alteon / Red Light and Photobiomodulation / Red Lumen HEALRAY PBM 1
CELLULAR ENERGY

Red Lumen HEALRAY PBM 1

Also known as Red Light Bed PBM 1

The Red Lumen HEALRAY PBM 1 is a high energy density full body photobiomodulation therapy bed engineered for professional wellness and longevity environments.

Authorised Alteon distributor in India . Installation, training and AMC by TechFit
Red Lumen HEALRAY PBM 1
Overview

What the Red Lumen HEALRAY PBM 1 is

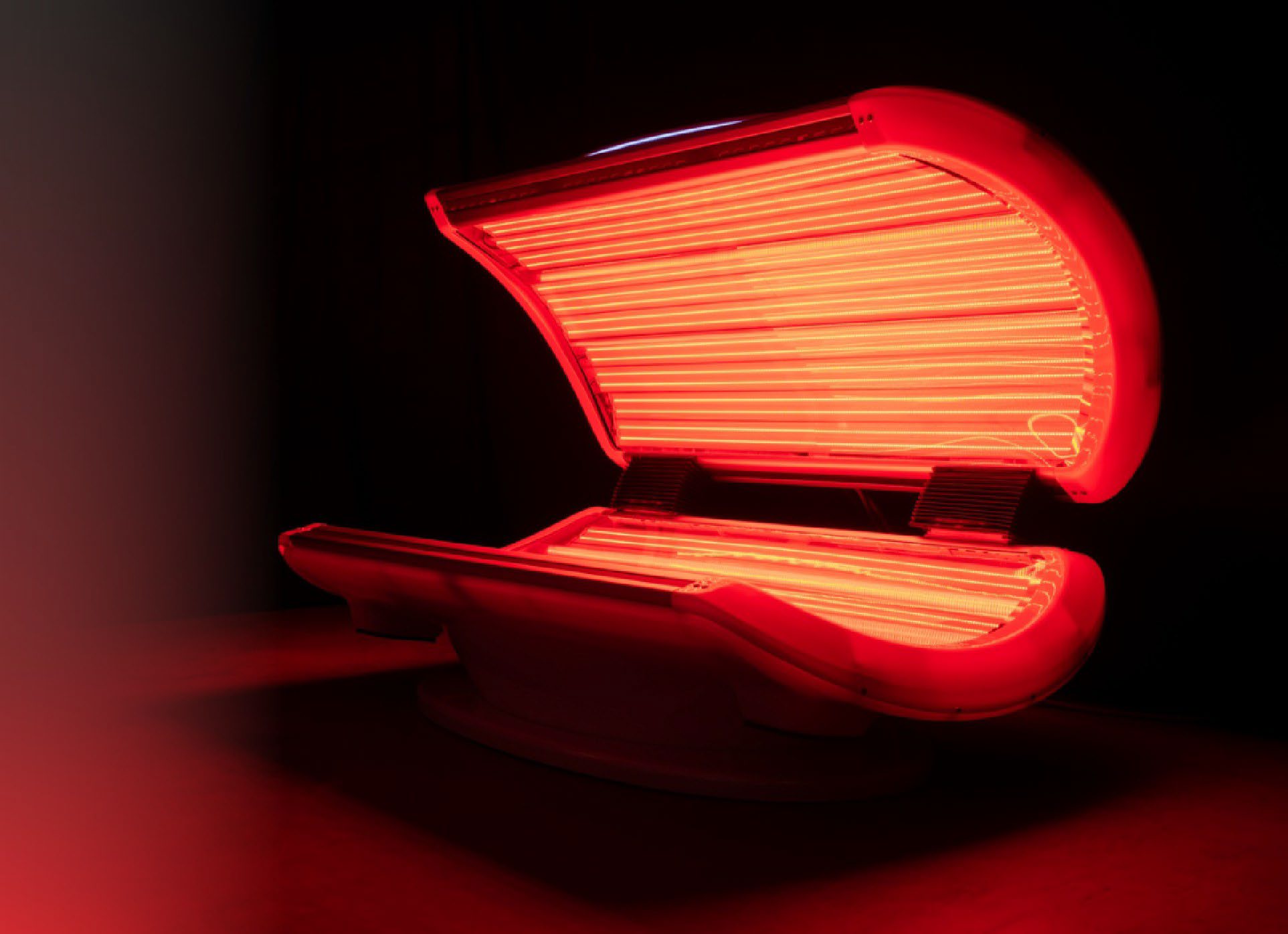

The Red Lumen HEALRAY PBM 1 is a high energy density full body photobiomodulation therapy bed engineered for professional wellness and longevity environments. Its widened, lengthened embrace style cabin surrounds the body to make light irradiation more uniform and stimulate the entire body in one treatment, using the superposition effect of light. A five wavelength spectrum with independent wavelength control delivers clinical grade red and near infrared therapy with an unprecedented depth of tissue penetration.

Premium gyms and performance clinicsSports medicine and physiotherapy centresLongevity and age management clinicsFive star hotel and destination spasMedical aesthetic centresWellness resorts
Red Lumen HEALRAY PBM 1 overview
How it works

What happens in a session

Five distinct red and near infrared wavelengths enter the skin simultaneously, scattering to create a saturating net effect that delivers maximum light energy to every layer of tissue. This light is absorbed by cellular mitochondria to boost ATP production, release nitric oxide and reduce oxidative stress. Independent wavelength, frequency and duty cycle control lets each session be tuned for targeted therapeutic outcomes.

Benefits

What your clients get from it

01Reduces inflammation and eases acute and chronic pain
02Reduces neuropathic pain
03Accelerates wound healing and tissue repair
04Enhances muscle recovery and reduces fatigue
05Improves blood flow and circulation
06Increases ATP production and mitochondrial function
07Stimulates collagen for reduced fine lines and wrinkles
08Supports recovery from post surgical conditions
09Improves skin quality and hair regrowth
10Promotes better sleep and whole body recovery

Outcomes vary by person and protocol. This equipment supports wellness and recovery programmes and is not a substitute for medical treatment.

Features

How it is built

  • Five wavelength spectrum for deep, saturating tissue penetration
  • 21,600 high output LEDs
  • 3000W total power output
  • Independent wavelength control
  • Adjustable pulse frequency from 1 to 10,000Hz
  • Adjustable duty cycle from 1 to 100
  • 100,000 hour LED lifetime
  • Bluetooth surround audio system
  • Independent separate air duct cooling system
  • Self developed wireless smart control system
  • Embrace style widened cabin for uniform irradiation
  • Optional external control tablet
Technical specifications

Red Lumen HEALRAY PBM 1 specifications

ModelHEALRAY PBM 1
Wavelength633nm, 660nm, 810nm, 850nm, 940nm
LED Quantity21,600 LEDs
Total Power3000W
LED Lifetime100,000 Hours
ControlIndependent wavelength control
Frequency1 to 10,000Hz
Duty1 to 100
External Control TabletOptional
Bluetooth Music SystemYes
Cooling SystemYes
Net Weight130 kg
Voltage220V
ColorsWhite / Black
Dimensions76.2 x 33.7 x 32.2 in
Dimensions (L x W x H)1935 x 857 x 817 mm
Light SourceTaiwan EPISTAR 0.2W LED chips
LED Exposure Angle120 degrees
Power SupplyConstant flow source
Weight Limit150 kg
Acrylic SheetUK Lucite Acrylic Sheet, up to 99% Light Transmittance
Duty Cycle Adjustable System0 to 100%
Pulse Adjustable System0 to 10000Hz
Fresh Air Exchange Volume1000CFM
Audio SystemBluetooth surround audio system
Installation in India

From site check to handover

01Site assessment

Room size, access route, floor loading, ventilation and power are checked against the unit before you order.

02Delivery and installation

TechFit engineers deliver, position, connect and commission the unit at your facility.

03Operator training

Your team is trained on protocols, daily checks, hygiene and safe operation.

04Service and AMC

Spares, breakdown support and an annual maintenance contract, pan India.

Alteon Elysion hyperbaric chamber installed by TechFit at Matrix Wellness, Mumbai
Installed in India

Matrix Wellness, Mumbai

Tiger and Krishna Shroff's recovery and longevity centre in Santacruz West runs 14 Alteon machines, from the Elysion hyperbaric chamber and CryoOnyx Pro to IHHT, PEMF and the Body Scan Pro, all supplied and installed by TechFit.

Questions

Frequently asked

Is the Red Lumen HEALRAY PBM 1 available in India?

Yes. TechFit is the authorised distributor of Alteon in India and supplies the Red Lumen HEALRAY PBM 1 with site assessment, delivery, installation, operator training and AMC nationwide.

What is the price of the Red Lumen HEALRAY PBM 1?

Pricing depends on the configuration, quantity and your site, so it is shared directly. Message TechFit on WhatsApp with your city and requirement and the team replies with a written quotation.

What space and power does the Red Lumen HEALRAY PBM 1 need?

The technical specifications on this page list the unit size and power supply. TechFit reviews your room, access route, flooring, ventilation and electrical points before delivery and shares a site readiness checklist with the quotation.

Who installs and services it?

TechFit engineers install and commission the unit, train your operators and support it afterwards with spares and an annual maintenance contract, across India.

Is it suitable for commercial use?

Yes. It is built for gyms, hotels, clinics, longevity centres and high traffic recovery suites. TechFit supplies equipment only and does not offer sessions or treatments.
