Whole Body Cryotherapy
Electric nitrogen free and liquid nitrogen whole body cryo chambers delivering ultra cold exposure for rapid recovery, inflammation control and metabolic conditioning.
COLD RECOVERY
The ICYONYX 110°C Cryo Chamber is a fully electric whole body cryotherapy chamber that delivers a stable, wraparound cold environment for premium recovery. Engineered as the professional standard for high volume wellness centres, it maintains precise sub zero temperatures without the need for liquid nitrogen. The result is a repeatable, supervised cold exposure experience built for consistent throughput and clinical grade safety.
| Dimensions | 72.83 x 66.93 x 100.39 in |
| Typical Session | 2 to 3 minutes |
| Temperature | -110C to -150C |
| Status | Supervised Use Recommended |
| Operation | Fully electric, no liquid nitrogen |
| Target Temperature Control | down to -150C |
| Airflow | Uniform wrap around |
| Configuration | Air cooled or water cooled |
| Control | Integrated tablet, screen, and physical buttons |
| Ambient Humidity | 25% to 90% |
| Shelf Life | 1 Year |
| Model CB-110 Target Temperature | -110C |
| Model CB-110 Dimensions | 1850 x 1700 x 2550 mm |
| Model CB-110 Max Power | 18.5 kW |
| Model CB-110 Cooling Capacity | 4.8 kW |
| Model CB-110 Weight | 1200 kg |
| Model CB-110 Power Supply | 3 phase 380V 50Hz |
| Model CB-110 Duct Type | Wrap around recovery |
| Model CB-130 Target Temperature | -130C |
| Model CB-130 Dimensions | 2050 x 1700 x 2550 mm |
| Model CB-130 Max Power | 22.5 kW |
| Model CB-130 Cooling Capacity | 5.8 kW |
| Model CB-130 Weight | 1150 kg |
| Model CB-130 Power Supply | 3 phase 380V 50Hz |
| Model CB-130 Duct Type | Wrap around recovery |
| Model CB-150 Target Temperature (plus or minus 10C) | -150C |
| Model CB-150 Dimensions | 2300 x 2000 x 2550 mm |
| Model CB-150 Max Power | 30.0 kW |
| Model CB-150 Cooling Capacity | 8.6 kW |
| Model CB-150 Weight | 1800 kg |
| Model CB-150 Power Supply | 3 phase 380V 50Hz |
| Model CB-150 Duct Type | Wrap around recovery |
| Water Cooled Main Water Outlet | DN40 fitting |
| Water Cooled Piping | DN45 hard tube, standard length 2 meters |
| Electrical Frequency | 50 Hz plus or minus 1 Hz |
| Electrical Phase and Voltage | Three Phase 380 V plus or minus 5 V |
| Grounding | Proper grounding mandatory |
COLD RECOVERY
The CryoOnyx Pro is a premium whole body cryotherapy chamber engineered for elite performance and clinical recovery, available in fully electric and nitrogen cooled configurations. It delivers ultra low temperatures with precise thermal control, medical grade safety standards, and repeatable session protocols. Designed for luxury wellness environments, it fits seamlessly into spas, clubs, hotels, and premium residences.
| Dimensions | 72.83 x 66.93 x 100.39 in |
| Voltage | AC110V / 220V 50 to 60Hz |
| Power | 3000W |
| Temperature | -196C |
| Screen | 15.6 inch touch screen |
| Single Use Time | 180S |
| Chamber Size | 1450 x 780 x 1950 mm |
| Liquid Nitrogen Consumption | 5 to 7 KG per person |
| Package Size | 155 x 90 x 220, 400kg |
| Screen Logo | Free |
| With Nitrogen Tank | Yes |
| Gross Weight | 90KG |
| Typical Session | 2 to 3 minutes |
| Temperature Range | Down to -190C |
| Footprint | Compact 6 x 3 ft design |
| Efficiency | Low nitrogen consumption |
| Performance | Rapid cooling and precise control |
| Safety | Integrated O2 sensors and extraction |
| Construction | Medical grade build quality |
| Width | 118.8 cm (46.77 in) |
| Length | 170 cm (66.93 in) |
| Height | 204 cm (80.31 in) |
| Weight | 300 kg |
| Electrical Energy Consumption | 1.5 / 2 kW |
| Power Supply | 230 / 50 V/Hz |
| Temperature Range (Cabin) | -120C to -180C |
| Nitrogen Consumption per Session | approx 1 to 2.5 kg/min |
| Nitrogen Consumption Cabin Freezing | approx 4 to 7 kg |
| Digital Display Inside Cabin | 13.3 inch |
| Color Touch Screen Panel | 10.1 inch |
| Auto Drying System | Yes |
| Auto Lifting System | up to 150kg |
| Programs | 3 automatic program and 1 manual program |
| Emergency Stop Safety Button | Yes |
| Safety Sensor on Door | Yes |
| Thermovision Camera | Yes |
| Optimum Efficiency Exposure Temperature | -120C to -170C (-184F to -280F) |
| Exposure Duration | 1 to 3 minutes |
| Certificates | CE, B, ISO 9001 (LL-C Certification) |
| Room Needed to Start | 6 m2 |
| Estimated ROI | only 6 month |
COLD RECOVERY
The ICYONYX CryoBlast is a next generation electric local cryotherapy device that delivers a precise stream of ultra cold air to targeted areas of the body. Powered by NASA inspired proprietary YOVO technology, it is engineered for pain management, injury recovery, and aesthetic treatment across the health and wellness industry. Its accurate, targeted airstream makes it a versatile, mobile solution for physiotherapy, faster recovery, and holistic wellness.
| Dimensions | 31.1 x 15.0 x 28.7 in |
| Model | ICYONYX CRYOBLAST ICXCR23-1 |
| Functionality | Precision cold air flow delivery |
| Control Interface | Large 10.4 inch touch screen |
| Air Discharge Tubing | Small tube 12mm / Large tube 20mm |
| Cryogenic Intensity Levels | Level 1 to 7 (adjustable) |
| Operation Duration | 0 to 60 minutes (adjustable) |
| Temperature Range | -5C to -20C |
| Evaporator Temperature | -40C |
| Compressor Capacity | 500W |
| Thermal Dissipation Capacity | 1920W |
| Volumetric Air Flow Rate | 75 m3/h |
| Power Consumption | 1KW |
| Net Mass | 72kg |
| Gross Mass | 95kg |
| Device Dimensions | 790 x 380 x 730 mm |
| Electrical Input | AC220V 50Hz |
| Display | 10 inch Multi Color Display |
| Technology | YOVO (Yttrium Oxide Ventilated Optimization) technology |
| Systems | Aerospace inspired technology; compressed ambient air system; automatic self defrosting system |
| Consumables | Zero consumables required |
COLD RECOVERY
The Cryo Q One is a fully electric, nitrogen free whole body cryotherapy chamber that delivers a thermal recovery sensation equivalent to -110°C. Built for longevity clinics and premium gyms, it uses a fully electric cascade refrigeration system to provide clean, repeatable cold exposure without liquid nitrogen. Panoramic dual pane glass, smart voice prompts, customisable ambient lighting, and high definition audio elevate the cold exposure into a premium wellness experience.
| Height | 232 cm (91 in) |
| Depth | 211 cm (83 in) |
| Width | 112 cm (44 in) |
| Technology | Fully Electric Cascade Refrigeration (Nitrogen Free) |
| Heat Rejection | Water Cooled Condenser System |
| Thermal Intensity | Equivalent to -110C |
| Cooling Time | 30 min |
| Drying Time | 2 Hours |
| Touch Screen Display Size | 15.6 inch |
| Type | Fully electric cryotherapy chamber for WBC |
| Perceived Temperature | -110C (-166F) |
| Certificates | CE, B, ISO 9001 (LL-C Certification) |
| Glass | Cryo Shield dual pane glass, thermal barrier |
| Cooling Medium | Water, not air |
| Cooling Paths | Two distinct liquid cooling paths |
| Hydro Cool Efficiency System | Connects directly to mains and drain |
| Performance Loop Cooling | External chiller, 100% closed loop circuit, no floor drain |
| Session Length | 3 minutes |
| Airflow Intensity Range | 1% to 100% |
| Drying Cycle | Fully automatic 2 hour |
COLD RECOVERY

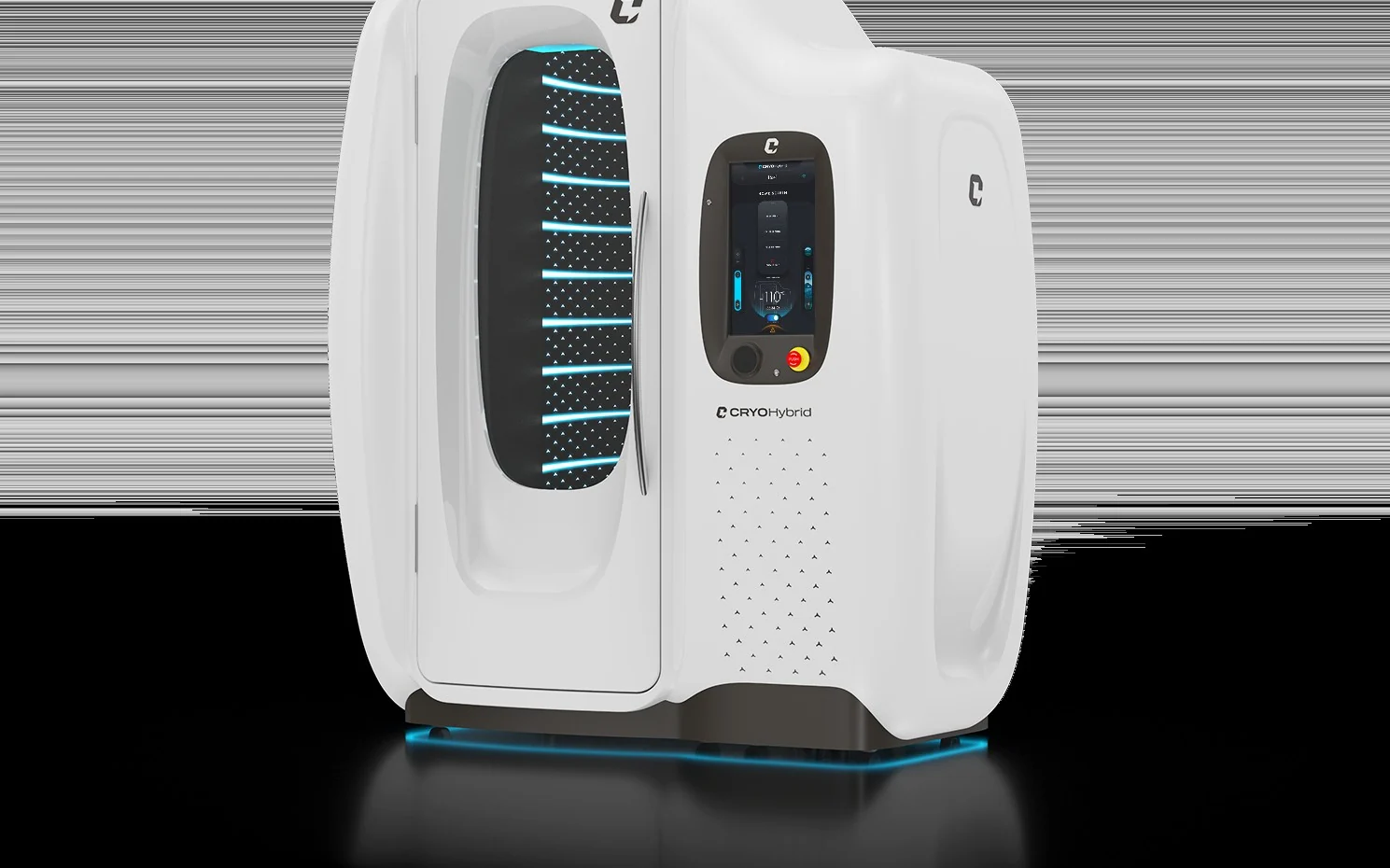

The Cryo Hybrid is a high performance, fully electric whole body cryotherapy chamber engineered to deliver a thermal intensity equivalent to -110°C without the use of liquid nitrogen. Designed for high volume operation and maximum return on investment, it features a massive 21 inch touchscreen, low daily energy costs, and an open, spacious cabin. Smart voice notifications, premium audio, and ambient LED lighting create a refined recovery experience for demanding wellness environments.
| Perceived Temperature | up to -110C |
| Energy Consumption | approx. 4.7 kWh per hour |
| Touch Display Size | 21 inch |
| Prefreezing Time | up to 60 min |
| Drying Time | up to 2 hours |
| Glass | Double layered tempered glass |
| Dimensions | 49.2 x 77.76 x 91.54 in |
| Type | Fully electric cryosauna (nitrogen free) |
| Thermal Intensity | Feels like -110C |
| Interface | Immersive atmosphere with smart voice prompts |
| Best For | High volume use, low energy cost |
| Daily Sessions | Up to 100 plus sessions per day |
| Session Length | 3 minutes |
| Glass Insulation | Double layered high grade tempered glass, 2 layer insulation |
| Audio Mood Categories | Six categories: atmospheric, dreamy, powerful, happy, inspiring, relaxing |
COLD RECOVERY
The Cryo Total is an advanced cryotherapy chamber that reaches subzero temperatures down to -140°C for both Whole Body (WBC) and Partial Body (PBC) treatments. It features an electric window that adjusts to keep the client's head inside or outside the cold air flow, with an innovative system that ensures a completely breathable environment and no direct nitrogen vapour contact. An auto drying system and a bezel free 21 inch touchscreen interface deliver a premium, flexible recovery experience.
| Height | 232.5 cm (91.54 in) |
| Depth | 125 cm (49.21 in) |
| Width | 197.5 cm (77.76 in) |
| Weight | 290 kg |
| Power supply | 230V or 110V |
| Cooling down time | 3 to 5 min |
| Temperature range | up to -140C |
| Touch display size | 21 inch |
| Tank pressure | 22 Bar |
| Type | Closed cryotherapy chamber, sub zero up to -140C |
| Session Length | 2 to 3 minutes |
| Optimum Efficiency Range | -120C to -140C (-184F to -284F) |
| Optimum Exposure Duration | 1 to 3 minutes |
| Maximum Power Needed | 10 amp 230VAC / 20 amp 110VAC |
| Air Environment | 100% breathable, no client contact with nitrogen vapors |
| Electric Window | Yes |
| Door Sensor | Yes |
| Audio Two Way Communication | Yes |
COLD RECOVERY
The Cryo V2 is an open roof, nitrogen based cryosauna that evenly distributes extreme temperatures down to -180°C for localised partial body treatments. It features dual touchscreens, a thermovision safety camera, and an auto lifting platform to deliver fast muscle recovery and metabolic boosts. Engineered for high performance recovery, it combines rapid cold exposure with intelligent safety monitoring.
| Width | 118.8 cm (46.77 in) |
| Length | 170 cm (66.93 in) |
| Height | 204 cm (80.31 in) |
| Weight | 300 kg |
| Energy consumption | 1.5 / 2kW |
| Power supply | 230 / 50 V/Hz |
| Temperature range | -120C to -180C |
| Nitrogen use per session | approx. 1 to 2.5 kg/min |
| Color touch screen | 10.1 inch |
| In cabin display | 13.3 inch |
| Nitrogen Consumption Cabin Freezing | approx 4 to 7 kg |
| Optimum Efficiency Exposure Temperature | -120C to -170C (-184F to -280F) |
| Exposure Duration | 1 to 3 minutes |
| Color Touch Screens | 2x |
| Certificates | CE, B, ISO 9001 (LL-C Certification) |
| Room Needed to Start | 6 m2 |
| Return on Investment | only 6 month |
COLD RECOVERY
Cryo Local Polar Bear is a nitrogen based localised cryotherapy device for targeted cold treatment of the body and face. A large built in nitrogen tank feeds a long blowing hose that directs cold vapour to specific areas at temperatures as low as minus 160 degrees Celsius. It combines defined treatment programmes with precise operator control.
| Touch-screen LCD display | 10.1 inch |
| Available programs | 23 programs |
| Enlarged built-in liquid nitrogen tank | 50L |
| Enlarged blowing hose for more convenient treatment | 2m |
| Nitrogen level sensor built in the tank | Included |
| Display information regarding nitrogen level in the display | Included |
| Defined programs for the body and facial + manual program | Included |
| Temperature of nitrogen vapour up to | -160 degrees Celsius / 256 degrees Fahrenheit |
| Operator control via LCD display and remote control at the nozzle | Included |
| Adjusted regulations of nitrogen flowing | 4 |
| Emergency stop safety button | Included |
| Skin temperature sensor with LED indicator | Included |
| Scope-setting lasers | Included |
COLD RECOVERY
Cryo Flow is an electric localised cryotherapy device that delivers targeted cold air through an adjustable arm and hose. Cold air between minus 4 and minus 30 degrees Celsius is directed to treatment areas with adjustable fan speeds for controlled application. A face cooling LED mask adds a light therapy option to the localised cold treatment.
| Touch-screen LCD display | 10.1 inch |
| Temperature range | -4 degrees Celsius to -30 degrees Celsius |
| Fan speed levels | 1 to 6 |
| Defrosting time | 15 seconds |
| Additional tips | 3 |
| Cryogenic hose to maintain low temperature | Included |
| Aluminum arm | Included |
| Steel cord balancer with long distance reaching | Included |
| Top shelf made by strong tempered glass | Included |
| High quality cryogenic material | Included |
| Treatment fuse | 2m |
| Fuse supporter | 3 joint supporter |
| Wheels with brake | Included |
| Face cooling LED Mask - Led Therapy | Included |
COLD RECOVERY
Cryo Flow Mini is a compact electric localised cryotherapy device for portable targeted cold treatment. It delivers cold air down to minus 20 degrees Celsius through an adjustable airflow handle with a temperature indicator. A face cooling LED mask adds light therapy in a small, easy to move format.
| Touch-screen LCD display | 10 inch |
| Temperature range | up to -20 degrees Celsius |
| Temperature indicator in the handle | Included |
| Adjustable airflow | Included |
| Defrosting | Included |
| Cryogenic hose to maintain low temperature | Included |
| High quality cryogenic material | Included |
| Face cooling LED Mask - Led Therapy | Included |
COLD RECOVERY
Cryo Touch is a contact based thermal therapy device that delivers both cold and heat through handheld wands. Its wands reach temperatures from minus 18 to 45 degrees Celsius with real time temperature feedback for precise facial and body treatments. Built in safety sensors and interchangeable wand sizes make it a versatile aesthetic tool.
| Touchscreen LCD Display | Included |
| Temperature Range | -18 degrees Celsius to 45 degrees Celsius / -0.4 degrees Fahrenheit to 113 degrees Fahrenheit |
| Real Time Temperature | Included |
| Built-in Safety Sensors | Included |
| Cooling Time | 15 min |
| Heating Time | 10 min |
| Wand Sizes | 50mm / 30mm |
