Hyperbaric Oxygen Chambers
Sealed chambers that pressurise the body far beyond normal breathing to flood tissue with oxygen, accelerating cellular repair, recovery and longevity protocols. A wellness line of lying, compact, premium and two seater cabins, and a medical line of Aero Pulse monoplace and modular multiplace systems up to 6 ATA.
HBOT Lying Chamber (AL3V36)
A lying down single person hyperbaric oxygen chamber that raises pressure to 2.0 ATA, dissolving up to 100% oxygen deep into blood plasma and tissue to accelerate healing, recovery and cellular repair. A compact, accessible entry into clinical grade HBOT for clinics, studios and residences.
| Model | AL3V36 lying down chamber |
| Working Pressure | 2.0 ATA / 109 kPa (adjustable) |
| Oxygen Concentration | up to 100% |
| Chamber Size | 900 x 2200 mm |
| Weight | 450 kg |
| Hull Material | Aluminium alloy |
| Oxygen Supply | 15 L oxygen concentrator |
| Intercom | Telephone and Bluetooth |
| Safety | Automatic safety valves |
| Capacity | 1 person lying down |
| Recommended Room Size | 60 to 80 sq ft |
HBOT 1 Seater, Compact
The HBOT 1 Seater Compact is a commercial grade seated hyperbaric oxygen chamber engineered for advanced cellular repair, longevity programming and accelerated recovery. A high strength carbon steel shell operates at a potent 1.9 ATA therapeutic pressure, paired with an integrated medical grade oxygen supply system delivering 93 percent pure oxygen. With a single compact external unit and automated climate control, it is the most space efficient full cabin chamber in the Alteon wellness line and the natural entry point into seated hyperbaric therapy for gyms, clinics and homes.
| Main Chamber | 86.61 x 70.87 x 74.80 in (2200 x 1800 x 1900 mm) |
| External Unit | 16.54 x 15.75 x 30.24 in (420 x 400 x 768 mm) |
| Working Pressure | 1.9 ATA (customisable) |
| Oxygen Concentration | 93 percent pure oxygen |
| Shell Material | High strength carbon steel |
| Climate | Automated climate control |
| Safety | Multi tier relief valves, dual communication channels |
| Capacity | 1 person, seated |

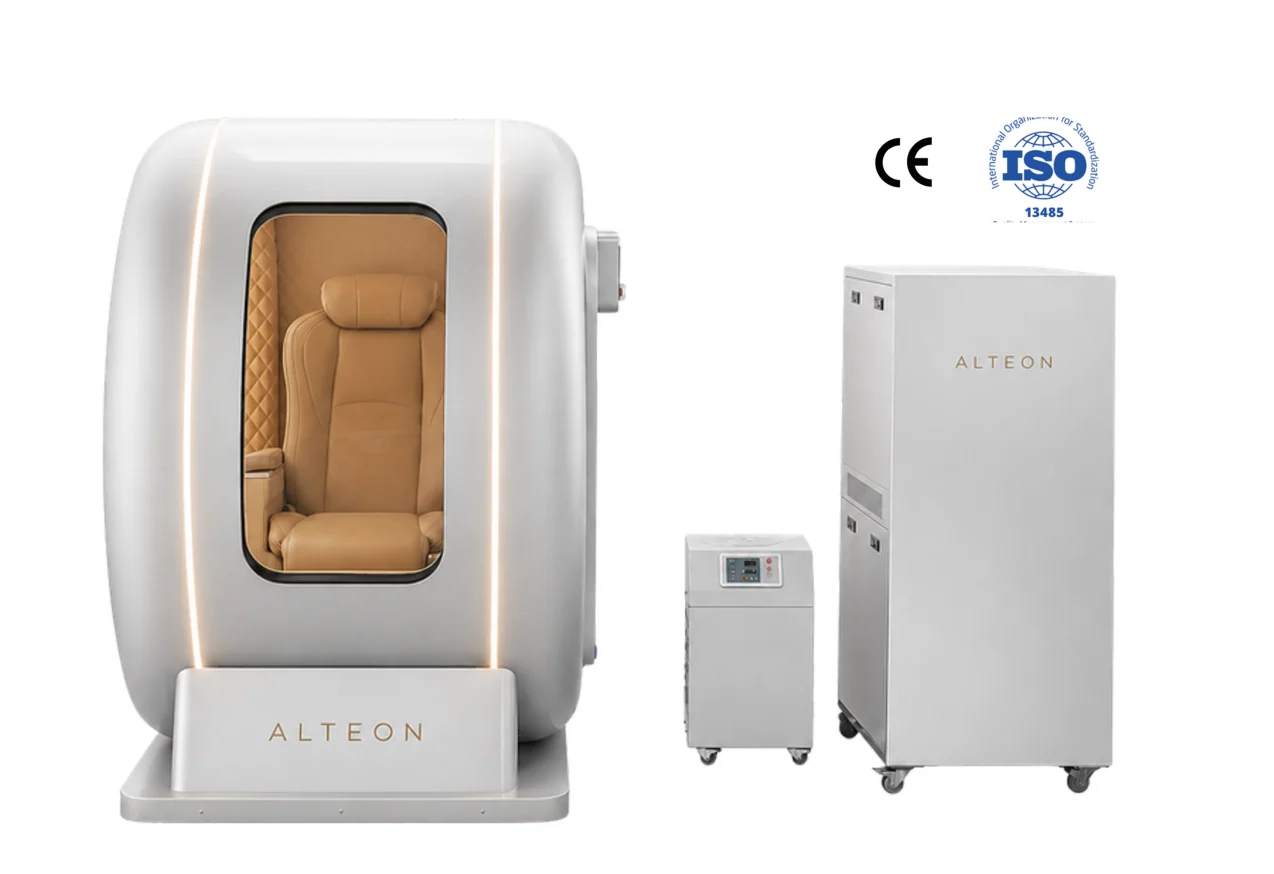

HBOT 1 Seater, Premium
The HBOT 1 Seater is a commercial grade single seat hyperbaric oxygen therapy chamber engineered for advanced cellular repair, longevity programming, and accelerated recovery. Built around a high strength Q345R carbon steel and acrylic cabin, it operates at a therapeutic working pressure of up to 1.9 ATA with a first class lounge seat for a luxury suite experience. An integrated air conditioning unit, soft padded upholstery, and headset oxygen delivery make it a seamless fit for premium clinics, recovery studios, and longevity centres.
| Dimensions | Main Chamber to 64.96 x 57.09 x 65.35 in External Chamber to 39.4 x 27.6 x 60.5 in HBOT Air Conditioning to 16.4 x 15.9 x 34.3 in |
| Maximum Working Pressure | 1.9 ATA (Customizable) |
| Chamber External Dimensions (L x W x H) | 1650 x 1450 x 1660 mm |
| Equipment Cabinet Dimensions (L x W x H) | 730 x 700 x 1440 mm |
| Equipment Cabinet Weight | 190 kg |
| Air Conditioning Unit Dimensions (L x W x H) | 470 x 380 x 585 mm |
| Air Conditioning Unit Weight | 37.5 kg |
| Oxygen Supply Concentration | 95 plus or minus 3% |
| Oxygen Delivery Method | Headset |
| Seat Configuration | First Class Lounge Sofa |
| Electrical Supply | AC 220 V, 50 Hz |
| Host Power Consumption | 3500 W |
| Air Conditioner Power Consumption | less than 2000 W |
| Exterior Finish | Spray Painted |
| Interior Finish | Soft Padded Upholstery |
| Cabin Material | Q345R Carbon Steel / Acrylic |
| Main Cabin Weight | 720 kg |
| Overpressure Release | Available |
| Ambient Lighting | Available |
| Air Conditioning Unit Max Power | 1.5 KW |
| Air Conditioning Unit Safety Factor | 1.4 |
| Certifications | CE; ISO 13485 |

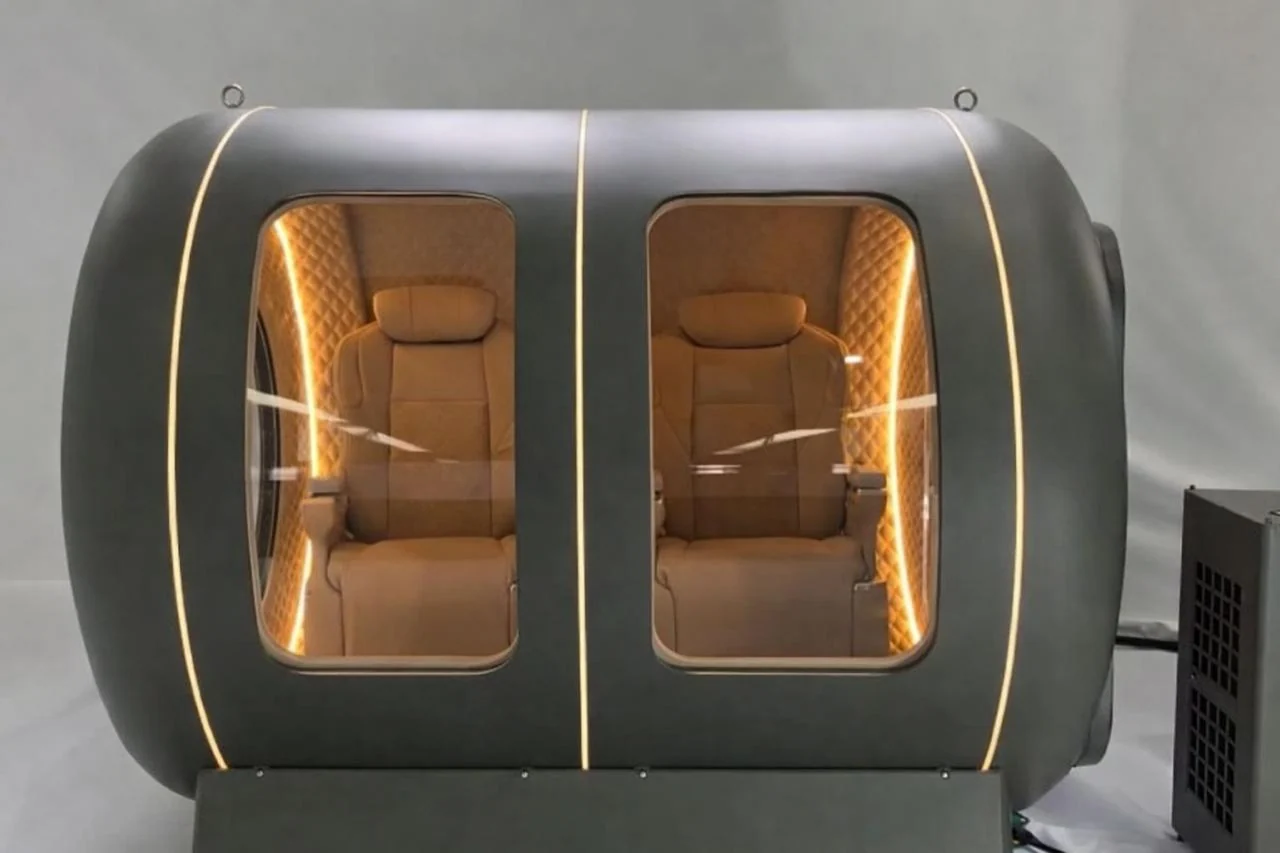

HBOT 2 Seater
The HBOT 2 Seater is a commercial grade two seat hyperbaric oxygen therapy chamber engineered for advanced cellular repair, longevity programming, and accelerated recovery for two guests at once. Built around a Q345R carbon steel and acrylic cabin, it operates at a therapeutic working pressure of up to 1.9 ATA with first class lounge seating and soft padded upholstery for a shared luxury suite experience. An integrated air conditioning unit, headset oxygen delivery, and built in overpressure release make it a seamless fit for premium clinics, spas, and longevity centres.
| Dimensions | Main Chamber to 90.6 x 65.0 x 68.9 in External Chamber to 39.4 x 27.6 x 60.5 in HBOT Air Conditioning to 16.4 x 15.9 x 34.3 in |
| Product Name | Luxury OxyRing HBOT |
| Model | RSO-A190 |
| Capacity | 2 Persons |
| Maximum Working Pressure | 1.9 ATA (Customizable) |
| Main Cabin Dimensions (L x W x H) | 2300 x 1650 x 1750 mm |
| Main Cabin Weight | 1000 kg |
| Apparatus Cabinet Dimensions (L x W x H) | 1000 x 700 x 1537 mm |
| Apparatus Cabinet Weight | 320 kg |
| A/C Unit Dimensions (L x W x H) | 417 x 405 x 870 mm |
| A/C Unit Weight | 50 kg |
| Oxygen Supply Concentration | 95 plus or minus 3% |
| Oxygen Delivery Method | Headset |
| Seat Configuration | First Class Lounge Sofa |
| Cabin Material | Q345R Carbon Steel / Acrylic |

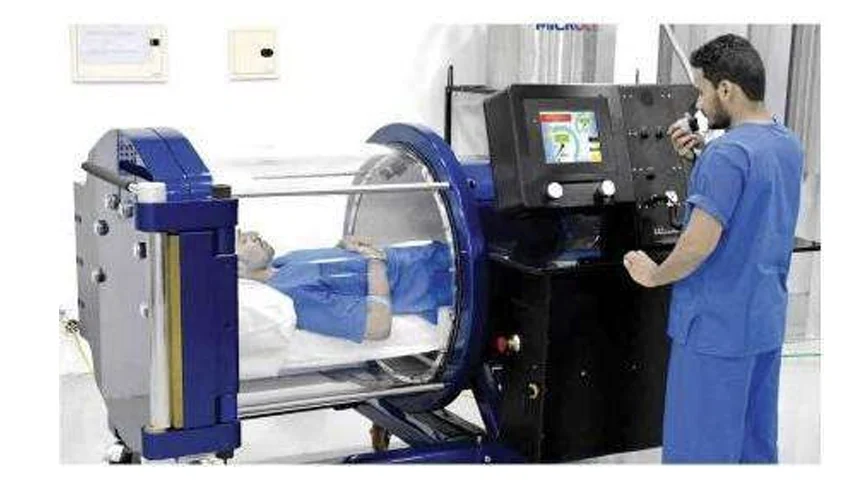

Aero Pulse 32"
The Aero Pulse 32 is a monoplace hyperbaric oxygen therapy chamber that pairs a space saving 32 inch interior diameter with the operating discipline of a fully automated medical device. Engineered for single patient treatment with the privacy and comfort of a luxury suite, it offers preset pressurisation and pre programmed profiles for seamless protocol management. A soft touch door, integrated TV, and clear communication system ensure comfort while automatic ventilation maintains optimal airflow and minimises oxygen consumption.
| Interior Diameter | 32 inch |
| Touchscreen Console | 15 inch |
| Preset Pressurization | Controlled, safe pressurization through preset options |
| Pre Programmed Profiles | Facilitates effective protocol implementation per indication |
| Integrated Entertainment | In chamber TV system for relaxation during longer sessions |
| Soft Touch Door | Soft touch door closing for effortless single operator use |
| Communication System | External transducer for clear, continuous patient operator dialogue |
| Automatic Ventilation | Continuous ventilation for patient comfort and minimized oxygen consumption |
| Certification | ASME U Stamped |
| Certification | PVHO-1 Compliant |
| Certification | NFPA-99 2015 Compliant |
| Certification | US FDA 510(k) Cleared |
| Certification | CE Certified MDD (Medical Device Directive) 93/42/EC |
| Certification | CE Certified PED (Pressure Equipment Directive) 2014/68/EU |
| Certification | EN 60601-1, EN 60601-1-2, EN 60601-1-6 Tested |
| Certification | Tested under the CB Scheme per IECEE |
| Certification | UL Listed |
Aero Pulse 40"
The Aero Pulse 40 is a monoplace hyperbaric oxygen therapy chamber featuring an industry leading 40 inch interior diameter for maximum patient comfort. This premium hybrid model is engineered for single patient treatment with the privacy and comfort of a luxury suite and the operating discipline of a fully automated medical device. A 15 inch touchscreen with built in safety features, preset pressurisation, and an effortless soft touch door streamline workflow, while an integrated TV and automatic ventilation keep patients relaxed and oxygen consumption optimised.
| Interior Diameter | 40 inch |
| Touchscreen Console | 15 inch |
| Preset Pressurization | Controlled, safe pressurization through preset options |
| Pre Programmed Profiles | Facilitates effective protocol implementation per indication |
| Integrated Entertainment | In chamber TV system for relaxation during longer sessions |
| Soft Touch Door | Soft touch door closing for effortless single operator use |
| Communication System | External transducer for clear, continuous patient operator dialogue |
| Automatic Ventilation | Continuous ventilation for patient comfort and minimized oxygen consumption |
| Certification | ASME U Stamped |
| Certification | PVHO-1 Compliant |
| Certification | NFPA-99 2015 Compliant |
| Certification | US FDA 510(k) Cleared |
| Certification | CE Certified MDD (Medical Device Directive) 93/42/EC |
| Certification | CE Certified PED (Pressure Equipment Directive) 2014/68/EU |
| Certification | EN 60601-1, EN 60601-1-2, EN 60601-1-6 Tested |
| Certification | Tested under the CB Scheme per IECEE |
| Certification | UL Listed |
Modular Medical HBOT Systems
The Alteon Heal O2 modular medical hyperbaric platform brings hospital grade oxygen therapy to any site. The flagship ModuO2 Chamber 1000M is a clinically validated multiplace chamber, engineered in an FDA approved facility and deployed in over 500 clinics worldwide, configurable from 1 to 21 individual recliner seats at treatment pressures up to 6 ATA. The HyperFlex modular series breaks the chamber down into sections that each fit through a standard 3 foot doorway, so a full medical chamber can be assembled in basements, upper floors and retrofitted clinics that a welded vessel could never reach. Layouts are customised to the actual room available at the installation site.
| Platform | Alteon Heal O2 medical hyperbaric portfolio |
| Flagship | ModuO2 Chamber 1000M multiplace |
| Capacity | 1 to 21 seats, individual recliners |
| Pressure | Up to 6 ATA (ModuO2); up to 3 ATA (HyperFlex modular) |
| Modularity | Sections fit a standard 3 foot wide doorway |
| Console | State of the art control console, continuous O2 monitoring |
| Certifications | US FDA approved platform, UL, CE (NB 0496, NB 2460), DNV GL ISO 13485 and ISO 9001 |
| Configuration | Custom room layouts engineered per site |
Let us design your wellness space
Tell us your space, footfall and goals. We will recommend the right Alteon line up and send a tailored quote. Sales, installation and AMC, pan India.
Hyperbaric Oxygen Chambers — Frequently Asked Questions
How much do commercial hyperbaric oxygen chambers cost in India?
Indicative pricing for commercial-grade hyperbaric oxygen chambers in India depends on model configuration, chamber size, and custom integration. For customized B2B quotation, site feasibility assessment, and import pricing, contact TechFit at +91 98201 66910 or info@techfittech.com.
What electrical and spatial requirements are needed for hyperbaric oxygen chambers?
Most Alteon hyperbaric oxygen chambers operate on standard commercial single-phase (220V/16A) or 3-phase power supplies, requiring dedicated room ventilation and level non-slip flooring. TechFit conducts a preliminary site survey to provide exact electrical and architectural schematics.
Who can install and use Alteon hyperbaric oxygen chambers in India?
Alteon systems are engineered for 5-star hotel spas, luxury gym recovery suites, sports physiotherapy centres, longevity biohacking clinics, and high-end private residences across India.
What is the delivery and installation timeline across Indian metro cities?
TechFit manages turnkey delivery, electrical commissioning, and technician staff training within 2 to 4 weeks across Mumbai, Delhi NCR, Bangalore, Hyderabad, Chennai, Pune, Kolkata, and Ahmedabad.
What warranty, spare parts, and AMC coverage does TechFit provide?
TechFit provides a comprehensive manufacturer warranty, localized spare parts inventory in Mumbai, and dedicated annual maintenance contract (AMC) service engineers across India.
